Section |

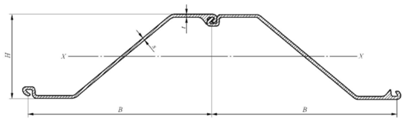

Dimensions |
sectional |
Mass |
Moment of inertia |
Modulus of Section |
||||
|
Width |
Height |
Thickness |
Per pile |
Wall |
|||||
|
B |
H |
t |
s |
|
|
|
|
|
|
|
mm |
mm |
mm |
cm2/m |
kg/m |
kg/m2 |
cm4/m |
cm3/m |
||
|
HRSP-Z-1100 |
575 |
260 |
8.8 |
- |
128.7 |
58.1 |
101.0 |
14300 |
1100 |
|
HRSP-Z-1250 |
575 |
260 |
10.8 |
- |
150.3 |
67.9 |
118.1 |
16250 |
1250 |
|
HRSP-Z-1600 |
575 |
350 |
9.2 |
- |
136.3 |
61.5 |
107.0 |
28000 |
1600 |
|
HRSP-Z-4595 |
580 |
481 |
18.0 |
14.0 |
291.2 |
132.6 |
228.6 |
110450 |
4595 |
|
HRSP-Z-4800 |
580 |
482 |
19.0 |
15.0 |
306.5 |
139.6 |
240.6 |
115670 |
4800 |
|
HRSP-Z-5015 |
580 |
483 |
20.0 |
16.0 |
322.2 |
146.7 |
252.9 |
121060 |
5015 |
|
HRSP-Z-1800 |
630 |
380 |
9.5 |
9.5 |
150.4 |
74.4 |
118.1 |
34200 |
1800 |
|
HRSP-Z-1870 |
630 |
381 |
10.0 |
10.0 |
157.2 |
77.8 |
123.4 |
35540 |
1870 |
|
HRSP-Z-2600 |
630 |
427 |
13.0 |
12.2 |
197.8 |
97.8 |
155.2 |
55510 |
2600 |
|
HRSP-Z-1205 |
700 |
314 |
8.5 |
8.5 |
123.3 |
67.7 |
96.7 |
18880 |
1205 |
|
HRSP-Z-1305 |
700 |
315 |
9.5 |
9.5 |
134.7 |
74.0 |
105.7 |
20540 |
1305 |
|
HRSP-Z-1355 |
700 |
316 |
10.0 |
10.0 |
140.4 |
77.2 |
110.2 |
21370 |
1355 |
|
HRSP-Z-1405 |
700 |
316 |
10.5 |
10.5 |
146.1 |
80.3 |
114.7 |
22190 |
1405 |
|
HRSP-Z-1730 |
700 |
420 |
8.5 |
8.5 |
133.0 |
73.1 |
104.4 |
36230 |
1730 |
|
HRSP-Z-1795 |
700 |
420 |
9.1 |
9.0 |
139.1 |
76.5 |
109.2 |
37745 |
1795 |
|
HRSP-Z-1800 |
700 |
420 |
9.0 |
9.0 |
139.2 |
76.5 |
109.3 |
37800 |
1800 |
|
HRSP-Z-1870 |
700 |
420 |
9.6 |
9.5 |
145.4 |
79.9 |
114.2 |
39322 |
1870 |
|
HRSP-Z-1940 |
700 |
421 |
10.1 |
10.0 |
151.7 |
83.4 |
119.1 |
40895 |
1940 |
|
HRSP-Z-2015 |
700 |
422 |
10.6 |
10.5 |
158.0 |
86.8 |
124.0 |
42470 |
2015 |
|
HRSP-Z-2430 |
700 |
459 |
11.2 |
11.2 |
174.1 |
95.7 |
136.7 |
55820 |
2430 |
|
HRSP-Z-2435 |
700 |
459 |
11.3 |
11.2 |
174.4 |
95.8 |
136.9 |
55945 |
2435 |
|
HRSP-Z-2600 |
700 |
460 |
12.3 |
12.2 |
187.4 |
103.0 |
147.1 |
59840 |
2600 |
|
HRSP-Z-2675 |
700 |
461 |
12.8 |
12.7 |
193.6 |
106.4 |
152.0 |
61640 |
2675 |
|
HRSP-Z-2760 |
700 |
461 |
13.2 |
13.2 |
200.2 |
110.0 |
157.2 |
63620 |
2760 |
|
HRSP-Z-3590 |
700 |
499 |
15.0 |
11.2 |
215.9 |
118.6 |
169.5 |
89610 |
3590 |
|
HRSP-Z-3595 |
700 |
499 |
15.1 |
11.2 |
216.1 |
118.8 |
169.6 |
89750 |
3595 |
|
HRSP-Z-4205 |
700 |
499 |
18.0 |
14.0 |
258.7 |
142.1 |
203.1 |
104930 |
4205 |
|
HRSP-Z-3795 |
700 |
500 |
16.0 |
12.2 |
230.0 |
126.4 |
180.6 |
94840 |
3795 |
|
HRSP-Z-4405 |
700 |
500 |
19.0 |
15.0 |
272.8 |
149.9 |
214.2 |
110150 |
4405 |
|
HRSP-Z-3995 |
700 |
501 |
17.0 |
13.2 |
244.2 |
134.2 |
191.7 |
100080 |
3995 |
|
Section |
Dimensions |
sectional |
Mass |
Moment of inertia |
Modulus of Section |
||||
|
Width |
Height |
Thickness |
Per pile |
Wall |
|||||
|
w |
h |
t |
s |
|
|
|
|
|
|
|
mm |
mm |
mm |
cm2/m |
kg/m |
kg/m2 |
cm4/m |
cm3/m |
||
|
HRSP-Z-4000 |
700 |
501 |
17.1 |
13.2 |
244.4 |
134.3 |
191.8 |
100220 |
4000 |
|
HRSP-Z-4605 |
700 |
501 |
20.0 |
16.0 |
287.0 |
157.7 |
225.3 |
115370 |
4605 |
|
HRSP-Z-4755 |
700 |
503 |
22.0 |
15.0 |
288.4 |
158.5 |
226.4 |
119650 |
4755 |
|
HRSP-Z-4955 |
700 |
504 |
23.0 |
16.0 |
302.6 |
166.3 |
237.5 |
124890 |
4.955 |
|
HRSP-Z-5155 |
700 |
505 |
24.0 |
17.0 |
316.8 |
174.1 |
248.7 |
130140 |
5155 |
|
HRSP-Z-2810 |
750 |
509 |
12.0 |
10.0 |
171.2 |
100.8 |
134.4 |
71540 |
2810 |
|
HRSP-Z-3005 |
750 |
510 |
13.0 |
11.0 |
184.7 |
108.8 |
145.0 |
76670 |
3005 |
|
HRSP-Z-3200 |
750 |
511 |
14.0 |
12.0 |
198.3 |
116.7 |
155.6 |
81800 |
3200 |
|
HRSP-Z-1245 |
770 |
344 |
8.5 |
8.5 |
120.1 |
72.6 |
94.3 |
21430 |
1245 |
|
HRSP-Z-1250 |
770 |
343 |
8.6 |
8.5 |
132.8 |
72.8 |
104.0 |
21495 |
1250 |
|
HRSP-Z-1300 |
770 |
344 |
9.0 |
9.0 |
125.8 |
76.1 |
98.8 |
22360 |
1300 |
|
HRSP-Z-1305 |
770 |
344 |
9.1 |
9.0 |
139.1 |
76.2 |
108.9 |
22433 |
1305 |
|
HRSP-Z-1355 |
770 |
344 |
9.6 |
9.5 |
145.4 |
79.6 |
113.8 |
23370 |
1355 |
|
HRSP-Z-1405 |
770 |
345 |
10.0 |
10.0 |
137.2 |
82.9 |
107.7 |
24240 |
1405 |
|
HRSP-Z-1840 |
800 |
449 |
8.5 |
8.5 |
128.6 |
80.7 |
100.9 |
41320 |
1840 |
|
HRSP-Z-2000 |
800 |
450 |
9.5 |
9.5 |
141.0 |
88.6 |
110.7 |
45050 |
2000 |
|
HRSP-Z-2165 |
800 |
451 |
10.5 |
10.5 |
153.5 |
96.4 |
120.5 |
48790 |
2165 |
|
HRSP-Z-2330 |
800 |
474 |
11.5 |
9.0 |
150.6 |
94.6 |
118.2 |
55260 |
2330 |
|
HRSP-Z-2500 |
800 |
475 |
12.5 |
10.0 |
163.3 |
102.6 |
128.2 |
59410 |
2500 |
|
HRSP-Z-2670 |
800 |
476 |
13.5 |
11.0 |
176.0 |
110.5 |
138.1 |
63570 |
2670 |
L'acciaio Palancola HRSP-Z è il materiale più comune utilizzato per le pareti Palancola grazie alla sua resistenza intrinseca, al peso relativamente leggero e alla lunga durata utile. Le Palancole in Acciaio sono disponibili in una varietà di sezioni trasversali standard.
